2300 Series Self Regulating Heating Cable (250°F/120°C max)

(Click on thumbnail to enlarge)

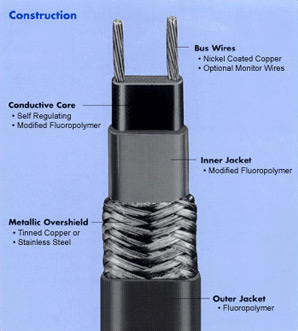

2300 Series Self Regulating Heating Cable (up to 120°)
2300 Series Self Regulating Heating Cable (up to 120°)

Fluid transport and storage systems that operate at high temperatures require specialized temperature maintenance and freeze protection systems. Products such as the Heat Trace Products, LLC. 2300 Series self-regulating heat trace cables are manufactured to provide high heat output in non-hazardous and hazardous applications. At Heat Trace Products, LLC., we have been manufacturing temperature maintenance and freeze protection systems for over 35 years. Our systems are engineered around specific process criteria and operating environments, including the 2300’s self-regulating feature which applies heat only when needed. Cable can be cut to length and terminated in the field to help simplify installation.

For more on the 2300 Series of self-regulating heating cable, or to learn how we can provided a custom Heat Trace Products, LLC. solution for your application, contact us directly.

Applications

The industrial grade 2300 cables provide freeze protection and process temperature maintenance for fluid transport and storage systems requiring high levels of heat output or exposure to elevated temperatures.

The bus wires, jackets and metallic braids can be configured for both ordinary (non-classified) locations and hazardous (classified), including areas where exposure to corrosive or organic materials is possible.

Performance Ratings

Output wattage:
5, 10, 15 w/ft @ 50°F

Supply voltages:
110 - 120 or 208V - 277Vac

Continuous maintenance temperature:
250°F (120°C) max

Maximum exposure temperature:
366°F (185°C)

T Rating*:
T-3

Braid resistance:
Tinned copper: 0.003 /ft

Stainless steel:
0.125 /ft *T-Rating per the 1999 NEC, Tables 500-5(d) and verified by FM and CSA.

ATEX EX

Approvals/Certifications

Factory Mutual:
Ordinary locations
Hazardous locations Class I, Div 1*/2, Groups B, C, D
Class II, Div 2, Groups F, G
Class III, Div 2

CSA:
Ordinary locations STD-130-03-G,-W,-S
Hazardous locations Class I, Div 1*/ 2, Groups A, B, C, D
Class II, Div 1*/ 2, Groups E, F, G
Class III, Div 1* and 2

SEMCO - (CE mark):

*Contact Heat Trace Products, LLC. representative for information on Division1 hazardous location systems.


Supply Voltage
Output Wattage
2300 Series Self Regulating Heating Cable
110 - 120 or 208V - 277Vac
5, 10, 15 w/ft @ 50°F (10°C)
16, 32, 49 w/meter
Close
Item Number HTP P/N Description
120 Volt High Temperature 5 Watt 120V 16 Watts/Meter
2305-11C00 SM0511C-000 5W Tinned/Copper Braid
2305-11S00 SM0511S-000 5W Stainless Steel Braid
2305-11T00 SM0511T-000 5W Tinned/Copper Braid & Fluoropolymer Overjacket
120 Volt High Temperature 10 Watt 120V 32 Watts/Meter
2310-11C00 SM1011C-000 10W Tinned/Copper Braid
2310-11S00 SM1011S-000 10W Stainless Steel Braid
2310-11T00 SM1011T-000 10W Tinned/Copper Braid & Fluoropolymer Overjacket
120 Volt High Temperature 15 Watt 120V 49 Watts/Meter
2315-11C00 SM1511C-000 15W Tinned/Copper Braid
2315-11S00 SM1511S-000 15W Stainless Steel Braid
2315-11T00 SM1511T-000 15W Tinned/Copper Braid & Fluoropolymer Overjacket
240 Volt High Temperature 5 Watt 240V 16 Watts/Meter
2305-21C00 SM0521C-000 5W Tinned/Copper Braid
2305-21S00 SM0521S-000 5W Stainless Steel Braid
2305-21T00 SM0521T-000 5W Tinned/Copper Braid & Fluoropolymer Overjacket
240 Volt High Temperature 10 Watt 240V 32 Watts/Meter
2310-21C00 SM1021C-000 10W Tinned/Copper Braid
2310-21S00 SM1021S-000 10W Stainless Steel Braid
2310-21T00 SM1021T-000 10W Tinned/Copper Braid & Fluoropolymer Overjacket
240 Volt High Temperature 15 Watt 240V 49 Watts/Meter
2315-21C00 SM1521C-000 15W Tinned/Copper Braid
2315-21S00 SM1521S-000 15W Stainless Steel Braid
2315-21T00 SM1521T-000 15W Tinned/Copper Braid & Fluoropolymer Overjacket
Class I Div 1 Approved
2305-14T00 SM0514T-000 5W 120V Tinned/Copper Braid/Fluoropolymer Jacket
2310-14T00 SM1014T-000 10W 120V Tinned/Copper Braid/Fluoropolymer Jacket
2315-14T00 SM1514T-000 15W 120V Tinned/Copper Braid/Fluoropolymer Jacket
2305-24T00 SM0524T-000 5W 240V Tinned/Copper Braid/Fluoropolymer Jacket
2310-24T00 SM1024T-000 10W 240V Tinned/Copper Braid/Fluoropolymer Jacket
2315-24T00 SM1524T-000 15W 240V Tinned/Copper Braid/Fluoropolymer Jacket
