The 2000 Series of self-regulating Heat Trace Products, LLC. cable represents the highest temperature rated product that we offer. It can maintain continuous temperatures up to 375°F (190°C) and up to 190 psig saturated steam purging, and is the only heat trace cable in its class that can deliver 25 and 30 W/ft. The 2000 Series can be used for freeze protection and process temperature maintenance in nonhazardous and hazardous locations where potentially explosive conditions exist, or in the presence of corrosive and organic material.
At Heat Trace Products, LLC., we manufacture complete temperature maintenance and freeze protection systems. The 2000 series is just one of many products that can be utilized to engineer a system that provides protection for specific heating requirements. For more information about our 2000 series self-regulating heat trace cables, contact us today.
Applications
The industrial grade 2000 cables provide freeze protection and process temperature maintenance for fluid transport and storage systems requiring very high levels of heat output or exposure to elevated temperatures.

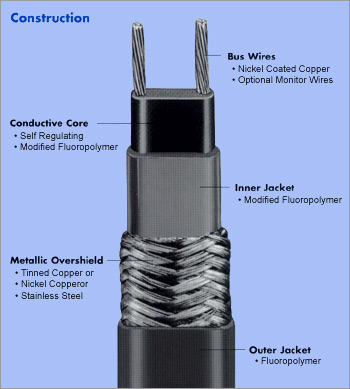

The bus wires, jackets and metallic braids can be configured for both ordinary (non-classified) locations and hazardous (classified), including areas where exposure to corrosive or organic materials is possible.
Performance Ratings
Output wattage:
5 through 30w/ft @ 50°F
(other wattages also available)
Supply voltages:
110 – 120 or 208V – 277Vac
Continuous maintenance temperature:
375°F (190°C) max
Intermittent exposure temperature:
450°F (232°C) max
T Rating*:
T-2C
Braid resistance:
Tinned copper: 0.003 ½/ft
Stainless steel:
0.125 ½/ft *T-Rating per the 1999 NEC, Tables 500-5(d) and verified by FM and CSA.
Approvals/Certifications
Factory Mutual:
Ordinary locations
Hazardous locations
Class I, Div 1*, Groups B, C, D
Class I, Div 2, Groups A, B, C, D
Class II/III, Div 1*, Groups E, F, G
Class II/III, Div 2, Groups F, G
Class I, Zone 1*, Group IIB + H2,
Class I, Zone 2, Group IIC
CSA:
Ordinary locations STD-130-03-G,-W,-S
Hazardous locations
Class I, Div 1*/ 2, Groups A, B, C, D
Class II, Div 1*/ 2, Groups E, F, G
Class III, Div 1* and 2
SEMCO – (CE mark):
*Contact Heat Trace Products, LLC. representative for information on Division1 hazardous location systems.
| 2000 Series Self Regulating Heating Cable (375°F/190°C) | Supply Voltage | Output Wattage |
| 110 - 120 or 208V - 277Vac | 5 through 30w/ft @ 50°F/10°C |
240VOLT HIGH TEMPERATURE 12 WATT 120V PFA
| Item Number | HTP P/N | Description |
| 120VOLT HIGH TEMPERATURE 5 WATT 120V PFA | 16 Watts/Meter | |
| 2005-11C00 | SH0511C-000 | 5W Tinned/Copper Braid |
| 2005-11S00 | SH0511S-000 | 5W Stainless Steel Braid |
| 2005-11K00 | SH0511K-000 | 5W Nickel-plated Copper Braid |
| 2005-11T00 | SH0511T-000 | 5W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2005-11F00 | SH0511F-000 | 5W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2005-11M00 | SH0511M-000 | 5W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 120 VOLT HIGH TEMPERATURE 8 WATT 120V PFA | 26 Watts/Meter | |
| 2008-11C00 | SH0811C-000 | 8W Tinned/Copper Braid |
| 2008-11S00 | SH0811S-000 | 8W Stainless Steel Braid |
| 2008-11K00 | SH0811K-000 | 8W Nickel-plated Copper Braid |
| 2008-11T00 | SH0811T-000 | 8W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2008-11F00 | SH0811F-000 | 8W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2008-11M00 | SH0811M-000 | 8W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 120VOLT HIGH TEMPERATURE 10 WATT 120V PFA | 32 Watts/Meter | |
| 2010-11C00 | SH1011C-000 | 10W Tinned/Copper Braid |
| 2010-11S00 | SH1011S-000 | 10W Stainless Steel Braid |
| 2010-11K00 | SH1011K-000 | 10W Nickel-plated Copper Braid |
| 2010-11T00 | SH1011T-000 | 10W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2010-11F00 | SH1011F-000 | 10W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2010-11M00 | SH1011M-000 | 10W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 120VOLT HIGH TEMPERATURE 12 WATT 120V PFA | 39 Watts/Meter | |
| 2012-11C00 | SH1211C-000 | 12W Tinned/Copper Braid |
| 2012-11S00 | SH1211S-000 | 12W Stainless Steel Braid |
| 2012-11K00 | SH1211K-000 | 12W Nickel-plated Copper Braid |
| 2012-11T00 | SH1211T-000 | 12W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2012-11F00 | SH1211F-000 | 12W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2012-11M00 | SH1211M-000 | 12W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 120VOLT HIGH TEMPERATURE 15 WATT 120V PFA | 49 Watts/Meter | |
| 2015-11C00 | SH1511C-000 | 15W Tinned/Copper Braid |
| 2015-11S00 | SH1511S-000 | 15W Stainless Steel Braid |
| 2015-11K00 | SH1511K-000 | 15W Nickel-plated Copper Braid |
| 2015-11T00 | SH1511T-000 | 15W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2015-11F00 | SH1511F-000 | 15W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2015-11M00 | SH1511M-000 | 15W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 120VOLT HIGH TEMPERATURE 18 WATT 120V PFA | 59 Watts/Meter | |
| 2018-11C00 | SH1811C-000 | 18W Tinned/Copper Braid |
| 2018-11S00 | SH1811S-000 | 18W Stainless Steel Braid |
| 2018-11K00 | SH1811K-000 | 18W Nickel-plated Copper Braid |
| 2018-11T00 | SH1811T-000 | 18W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2018-11F00 | SH1811F-000 | 18W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2018-11M00 | SH1811M-000 | 18W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 120VOLT HIGH TEMPERATURE 20 WATT 120V PFA | 65 Watts/Meter | |
| 2020-11C00 | SH2011C-000 | 20W Tinned/Copper Braid |
| 2020-11S00 | SH2011S-000 | 20W Stainless Steel Braid |
| 2020-11K00 | SH2011K-000 | 20W Nickel-plated Copper Braid |
| 2020-11T00 | SH2011T-000 | 20W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2020-11F00 | SH2011F-000 | 20W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2020-11M00 | SH2011M-000 | 20W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 120VOLT HIGH TEMPERATURE 25 WATT 120V PFA | 82 Watts/Meter | |
| 2025-11C00 | SH2511C-000 | 25W Tinned/Copper Braid |
| 2025-11S00 | SH2511S-000 | 25W Stainless Steel Braid |
| 2025-11K00 | SH2511K-000 | 25W Nickel-plated Copper Braid |
| 2025-11T00 | SH2511T-000 | 25W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2025-11F00 | SH2511F-000 | 25W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2025-11M00 | SH2511M-000 | 25W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 120VOLT HIGH TEMPERATURE 30 WATT 120V PFA | 98 Watts/Meter | |
| 2030-11C00 | SH3011C-000 | 30W Tinned/Copper Braid |
| 2030-11S00 | SH3011S-000 | 30W Stainless Steel Braid |
| 2030-11K00 | SH3011K-000 | 30W Nickel-plated Copper Braid |
| 2030-11T00 | SH3011T-000 | 30W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2030-11F00 | SH3011F-000 | 30W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2030-11M00 | SH3011M-000 | 30W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 240VOLT HIGH TEMPERATURE 5 WATT 120V PFA | 16 Watts/Meter | |
| 2005-21C00 | SH0521C-000 | 5W Tinned/Copper Braid |
| 2005-21S00 | SH0521S-000 | 5W Stainless Steel Braid |
| 2005-21K00 | SH0521K-000 | 5W Nickel-plated Copper Braid |
| 2005-21T00 | SH0521T-000 | 5W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2005-21F00 | SH0521F-000 | 5W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2005-21M00 | SH0521M-000 | 5W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 240VOLT HIGH TEMPERATURE 8 WATT 120V PFA | 26 Watts/Meter | |
| 2008-21C00 | SH0821C-000 | 8W Tinned/Copper Braid |
| 2008-21S00 | SH0821S-000 | 8W Stainless Steel Braid |
| 2008-21K00 | SH0821K-000 | 8W Nickel-plated Copper Braid |
| 2008-21T00 | SH0821T-000 | 8W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2008-21F00 | SH0821F-000 | 8W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2008-21M00 | SH0821M-000 | 8W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 240VOLT HIGH TEMPERATURE 10 WATT 120V PFA | 32 Watts/Meter | |
| 2010-21C00 | SH1021C-000 | 10W Tinned/Copper Braid |
| 2010-21S00 | SH1021S-000 | 10W Stainless Steel Braid |
| 2010-21K00 | SH1021K-000 | 10W Nickel-plated Copper Braid |
| 2010-21T00 | SH1021T-000 | 10W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2010-21F00 | SH1021F-000 | 10W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2010-21M00 | SH1021M-000 | 10W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 240VOLT HIGH TEMPERATURE 12 WATT 120V PFA | 39 Watts/Meter | |
| 2012-21C00 | SH1221C-000 | 12W Tinned/Copper Braid |
| 2012-21S00 | SH1221S-000 | 12W Stainless Steel Braid |
| 2012-21K00 | SH1221K-000 | 12W Nickel-plated Copper Braid |
| 2012-21T00 | SH1221T-000 | 12W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2012-21F00 | SH1221F-000 | 12W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2012-21M00 | SH1221M-000 | 12W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 240VOLT HIGH TEMPERATURE 15 WATT 120V PFA | 49 Watts/Meter | |
| 2015-21C00 | SH1521C-000 | 15W Tinned/Copper Braid |
| 2015-21S00 | SH1521S-000 | 15W Stainless Steel Braid |
| 2015-21K00 | SH1521K-000 | 15W Nickel-plated Copper Braid |
| 2015-21T00 | SH1521T-000 | 15W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2015-21F00 | SH1521F-000 | 15W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2015-21M00 | SH1521M-000 | 15W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 240VOLT HIGH TEMPERATURE 18 WATT 120V PFA | 59 Watts/Meter | |
| 2018-21C00 | SH1821C-000 | 18W Tinned/Copper Braid |
| 2018-21S00 | SH1821S-000 | 18W Stainless Steel Braid |
| 2018-21K00 | SH1821K-000 | 18W Nickel-plated Copper Braid |
| 2018-21T00 | SH1821T-000 | 18W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2018-21F00 | SH1821F-000 | 18W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2018-21F00 | SH1821F-000 | 18W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2018-21M00 | SH1821M-000 | 18W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 240VOLT HIGH TEMPERATURE 20 WATT 120V PFA | 65 Watts/Meter | |
| 2020-21C00 | SH2021C-000 | 20W Tinned/Copper Braid |
| 2020-21S00 | SH2021S-000 | 20W Stainless Steel Braid |
| 2020-21K00 | SH2021K-000 | 20W Nickel-plated Copper Braid |
| 2020-21T00 | SH2021T-000 | 20W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2020-21F00 | SH2021F-000 | 20W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2020-21M00 | SH2021M-000 | 20W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 240VOLT HIGH TEMPERATURE 25 WATT 120V PFA | 82 Watts/Meter | |
| 2025-21C00 | SH2521C-000 | 25W Tinned/Copper Braid |
| 2025-21S00 | SH2521S-000 | 25W Stainless Steel Braid |
| 2025-21K00 | SH2521K-000 | 25W Nickel-plated Copper Braid |
| 2025-21T00 | SH2521T-000 | 25W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2025-21F00 | SH2521F-000 | 25W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2025-21M00 | SH2521M-000 | 25W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 240VOLT HIGH TEMPERATURE 30 WATT 120V PFA | 98 Watts/Meter | |
| 2030-21C00 | SH3021C-000 | 30W Tinned/Copper Braid |
| 2030-21S00 | SH3021S-000 | 30W Stainless Steel Braid |
| 2030-21K00 | SH3021K-000 | 30W Nickel-plated Copper Braid |
| 2030-21T00 | SH3021T-000 | 30W Tinned Copper Braid & Blue MFA Fluoropolymer Overjacket |
| 2030-21F00 | SH3021F-000 | 30W Stainless Steel Braid & Blue MFA Fluoropolymer Overjacket |
| 2030-21M00 | SH3021M-000 | 30W Nickel-plated Copper Braid & Blue MFA Fluoropolymer Overjacket |
